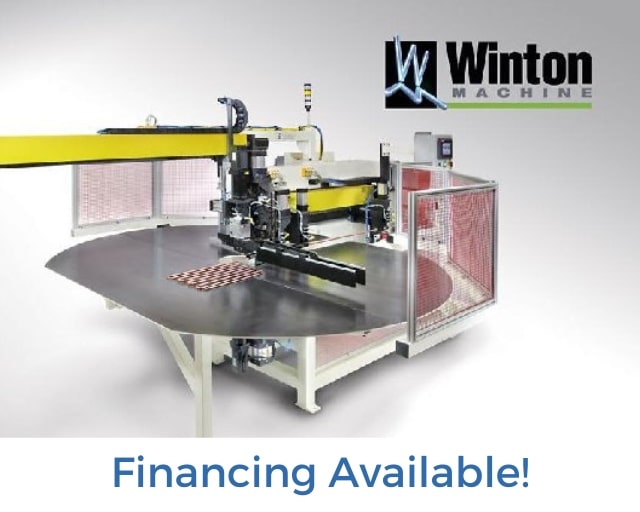

SB Series CNC High Speed Serpentine Tube Bender
Model #: 21424
The SB series CNC serpentine tube benders are designed for high speed production use. All SB models tube benders provide for serpentine tube bending without the need to rotate the material between bends (R axis plane rotation).
Program the bend angles, centerline radius, straight lengths, and serpentine production begins. The tubing always stays in contact with the support table maintaining flatness. One of the advantages of the SB series type tube bender is its ability to manage the serpentine coil as it is being formed. Because the bend head can bend both CW and then CCW without rotating the tube between bends, the ability to control larger serpentine coils becomes much easier.
Product Video & Details
Customers using Internet Explorer may have difficulty viewing the online training videos.
We suggest using Chrome, Safari, Microsoft Edge, or another modern internet browser to view our videos. To find out more about the system requirements to view our training videos, and to see if your device meets them, click here.
Safety
Product Description
The serpentine bender bends CW and CCW without the need to rotate the tube between bends. This feature often becomes important to ensure the bent serpentine tubing remains flat. In heat transfer applications, a flat serpentine coil translates into an efficient product. A split die actuator comes standard and allows for tight radius bending. The design of the bend head allows for instant CW or CCW bending.
All SB serpentine tube benders come standard with a tube straightener and a payoff to support a bulk spook of tubing. An optional cutoff provides for fast and accurate cutting of the tube after the serpentine profile has been formed.
Standard Equipment
- Maximum leg length is 914m (36″)
- Programmable lengths
- Programmable bend angles
- Large table top for post bending support
- Payoff not included
- straightener with encoder feedback for accurate feeding
- 80 PSI shop air required
